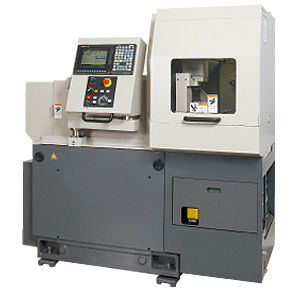

NN-20U5
20mm hard turning Model(25mm optional)
- 20mm hard turning Model
(25mm optional) - 2.2/3.7kw built-in spindle motor
- CNC M70V (MITSUBISHI) built-in
- Tool Post
-
Tool post is made of special casting iron which is strong for abrasion resistance. Sliding surface is crafted by scrapers, which ensures longer-lasting and high rigidness.
Tool name Size Standard Option OD Tool (Tool Holder) ▪12.7 5 6 ID Tool ER16 4 Live Tool ER16 4 3 Off-center drill + Live tool ER11 + ER16 3 Non-Live tool version is available
- CNC Control
- MITSUBISHI M70V is built-in, and the legibility is improved by 8.4 color TFT.
C-axis control is built-in as standard function, and Operation time can be reduced by Position Loop of Main Spindle without returning to the original position. - Operation panel
- This operation panel is movable according to your work, such as Programming, Setup,
and Maintenance.
- Spindle Motor
- 2.2/3.7kw built-in spindle motor on $1 main side,
and 25mm motor as an option.
- Cover
- The new larger cover will improve the effectiveness of your work, such as setting tools.
- Tool presetter : Optional
- Nomura’s original “Tool Presetters” increase machine utilization through “off machine” tool presetting of quick change tooling, reducing the time required to replace and adjust tools up to 60%. The Nomura Tool Presetter is a microscope-type unit that presets a turning tool to the same gauge length. This makes programming and operation much easier. It also makes it unnecessary to “touch off” tools after they are mounted on the machine, making the tool change process a 2-screw operation. With this unit, tooling can be set up even while the machine is running parts. Tooling can be quickly changed, and you can get back into operation fast.
- Safety System (Standard Equipment)
-
- Coolant oil cut-off detecton
- Stops the machine automatically when the pressure of coolant oil decreases below specified level.
- Door safety interlock switch
- Causes the main power breaker to trip and the power to shut down when electric cabinet cover is opened.
- Lightning surge protection function
- Protects electronic circuit from high voltage to shutdown noise such as lightning.
- Auto power interception
- Switches off the power breaker on the machine automatically when the machine is stopped during the automatic operation for any reason.
- Main spindle load detection mode
- Stops the machine detecting defects in the main spindle when standard load and actual main spindle load are different.
- Cut-off tool breakage detector
- Stops the machine automatically detecting materials that cannot be completely cut-off due to the breakage failure of the parting tool.
- Tap breakage detector(Option)
- Stops the machine automatically detecting broken tap while processing the edge face of the tap.
- Option
-
-
- Oil mist collector
- Collects floating mist and helps for better working environment.
-
- Signal warning light 3-stage type
- Facilitate confirmation in the distance on how the machine is working.
-
Specification Item
| Specification Item | Specification Item | |
|---|---|---|
| Max. Machining Capabilities | Max Machining diameter | φ20 mm (Option, φ25mm) |
| Max Machining length | 200mm/1 chuck | |
| Max. parts unloading length | 200mm/1 chuck | |
| Main Spindle | Main spindle through-hole diameter | φ24mm (Option, φ27mm) |
| Main spindle RPM | 10,000r.p.m. max. | |
| $1 | Max. no. of tools (as standard) | 13 |
| OD tool (□12.7×150ｍｍ Max.) | 5 (6 Option) | |
| ID frontal hole ER16 | 4 | |
| Live tool ER16 | 4 (5 Option) | |
| Max. frontal drill diameter | φ10mm | |
| Max. frontal drill length | 40mm | |
| Max. frontal tap diameter | M8 | |
| Max. live tool spindle drill hole | φ8mm | |
| Max. life tool spindle tap diameter | M6 | |
| Live main tool spindle | 6,000r.p.m. max. | |
| Rapid Feed rate | X1、Y1 ： 36m/min. Z1 ： 28m/min. |
|
| Min. command unit | 0.0001mm | |
| C-axis min. command unit ($1・2) | 0.0001° | |
| Motor | Main spindle motor | 2.2/3.7kW |
| Live tool motor | 0.75kW | |
| X1、Z1 | 1.0kW | |
| Y1 | 0.5kW | |
| Dimensions and Others | Coolant pump | 0.25kW |
| Lubricant pump | 0.003kW | |
| Main spindle center height | 1,000mm | |
| Pneumatic pressure & flow rate | 0.6MPa、50L/min | |
| Coolant tank Capacity | 63L | |
| Lubricant tank Capacity | 0.8L | |
| W×D×H | 1,650×1,100×1,680mm | |
| Weight | 1,350kg | |
| NC | MITSUBISHI NC | M70V |
| NC display (8.4 color TFT LCD) | ||
| NC Standard Function | Machining program memory capacity | 1,280m [500KB] |
| Number of tool off-set correction | 40pcs | |
| Background programming editing function | ||
| Main spindle C-axis function | ||
| User macro function | ||
| Tool nose rounding offset function | ||
| Corner chamfering/Corner rounding | ||
| Fixed cycle | ||
| Complex fixed cycle | ||
| Geometric commands | ||
| Operation manual | ||
| Serial In/Output interface | ||
| CF card interface/USB interface |
Standard Accessories
- 4 Live tool unit
- Frontal 4-drill attachment
- Tool holder □12.7 (4 pcs.)
- Tool holder □12.7 for cut-off (1 pce.)
- Synchronous rotary guide bush 20
- Synchronous rotary guide bush drive unit
- Main：Chuck sleeve/spring/spindle cap (P20)
- Drill holder φ22-10-70 (3 pcs.)
- Tap holder φ22-94L (1pce.)
- Main spindle cooling unit ($10)
- Automatic lubricator (w/level detection)
- Coolant oil unit
- Coolant oil cut-off detector
- Cut-off tool breakage detector
- Door safety interlock
- Main spindle load detection mode
- Automatic power interception
- Lightning surge protection function
- Parts catcher
- Working light (High luminance LED)
- Leveling pads
Optional Accessories
- Optional Accessories
- Fixed guide bush 20/25
- Synchronous rotary guide bush 20/25
- Sleeve for synchronous rotary guide bush
- 3 Off-center-drill unit (E unit)
- Tool holder □12.7 （additional)
- Drill holder for deep hole
- Tap holder for deep hole
- ALPS TOOL NA nut
- REGO-FIX ERM nut
- Tool presetter
- Manual pulse generator
- NC display language(English/Chinese/Korean)
- Parts catcher
- Pipe type parts unloader (I.D φ10.12, and 14ｍｍ)
- Large-sized lubricant pump 1.8L
- Hanger bolt
- Signal warning light 3-stage type
- Medium pressure coolant
- Oil mist collector
- Tooling
- Parts box
- Note
- The above-mentioned machine capability is for the case when work material is SUS303.
Depending on the processing condition such as the quality of work material and the tools to be used，
machine capabilities values may differ from the above-mentioned values. - The specification based on the specification applied within Japan.
Specifications are subject to change without notice. - This product could be classified as strategic item or other export regulated under the
Foreign Exchange and Foreign Trade Law.
Contact our sales representative when exporting this product.
