NN-20UB8
Advanced new model of "UB" series, a greater solid and stable performance.
- New lineup of Rotary back tool unit which is possible to machine various and complicated products.
- Improvement of the maintenance by new larger door cover
- Overwhelmingly cost-effective 20mm model
- High rigid designed tool post
- CNC M70 (MITSUBISHI) built-in
- Main Tool Post
- Tool post is made of special casting iron which is strong for abrasion resistance.
Sliding surface is crafted by scrapers, which ensures longer-lasting and high rigid.And there are various optional units for your customers' request. -
Tool Size Standard Option OD Tool (Tool Holder) □12.7 5 6 ID Tool ER-16 4 Live Tool ER-16 4 5 *Off-center-drill + Live Tool ER11+ER16 3 (* Option：When using Rotary back tool unit)

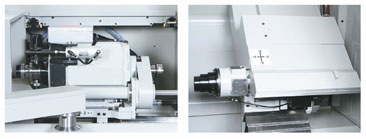

- Back Tool Post
-
Standard (Back tool unit)
Tool name Size OD Tool (Comb Tool)×1 □10 ID Tool×3 ER16 -
Option (Rotary back tool unit)
Tool name Size ID Tool×2 * ER16 Off-center-drill×2 ER16 (* OD Tool（ Comb Tool）×1 attachable)
[ CNC Control ] MITSUBISHI M70 is built-in, and the legibility is improved by 8.4 color TFT.
C-axis control is built-in as standard function, and operation time can be reduced by Position Loop of Main Spindle without returning to the original position.
[ Spindle Motor ] 2.2/3.7kw built-in spindle motor is mounted on $1
main side, and 25mm spindle motor as an option.
Motor with C-axis function (Simple belt type) on $2 back side.
- Safety System (Standard Equipment)
-
- Coolant oil cut-off detecton
- Stops the machine automatically when the pressure of coolant oil decreases below specified level.
- Door safety interlock switch
- Causes the main power breaker to trip and the power to shut down when electric cabinet cover is opened.
- Lightning surge protection function
- Protects electronic circuit from high voltage to shutdown noise such as lightning.
- Auto power interception
- Switches off the power breaker on the machine automatically when the machine is stopped during the automatic operation for any reason.
- Main spindle load detection mode
- Stops the machine detecting defects in the main spindle when standard load and actual main spindle load are different.
- Cut-off tool breakage detector
- Stops the machine automatically detecting materials that cannot be completely cut-off due to the breakage failure of the parting tool.
- Tap breakage detector(Option)
- Stops the machine automatically detecting broken tap while processing the edge face of the tap.
Specification Item
| Specification Item | Specification Value | |
|---|---|---|
| Max. Machining Capabilities | Machining diameter | φ20mm(Option,φ25mm) |
| Machining length | 200mm/1 chuck | |
| Max. Parts unloading length | 105mm *(1) | |
| Main Spindle | Main spindle through-hole diameter | φ24mm(Option, φ27mm) |
| Main spindle RPM | 10,000 r.p.m max. 6,000 r.p.m max. |
|
| $1 | Max. no. of tools (as standard) | 17 |
| OD tool (□12.7×150ｍｍ max.) | 5 (6 Option) | |
| ID frontal hole ER16 | 4 | |
| Live tool ER16 | 4 (5 Option) | |
| Max. frontal drill diameter | φ10mm | |
| Max. frontal. drill length | 40mm *(2) | |
| Max.frontal tap diameter | M8 | |
| Max. live tool spindle drill diameter | φ8mm | |
| Max.live tool spindle tap diameter | M6 | |
| Live main tool spindle | 6,000 r.p.m max. | |
| $2 | OD (□10×80ｍｍ Max.) | 1 |
| ID frontal hole ER16 | 3 | |
| Max. frontal drill diameter | φ8mm | |
| Max. frontal tap diameter | M6 | |
| ID / Off-center drill (Option) | 2 / 2 | |
| Max. ID / Off-center drill diameter (Option) | φ8mm/φ6mm | |
| Max. ID / Off-center tap diameter (Option) | M6/M5 | |
| Feed rate | 30m/min. | |
| Min. command unit | 0.0001mm | |
| C-axis min. command unit ($1・2) | 0.0001° | |
| Motor | Main spindle motor | 2.2/3.7kW |
| Live tool motor | 0.75kW | |
| Back main spindle motor | 0.75kW | |
| Back live tool motor (Option) | 0.4kW | |
| X1, Z1 | 1.0kW | |
| Y1, X2, Z2 | 0.5kW | |
| Coolant pump | 0.25kW | |
| Lubricant pump | 0.003kW | |
| Dimensions and Others | Main spindle center height | 1000mm |
| Input power capacity | 12KVA | |
| Pneumatic pressure & flow rate | 0.6MPa、50L/min | |
| Coolant tank | 110L | |
| Lubricant tank | 0.8L | |
| W×D×H | 2,140×1,030 ×1,680 mm | |
| Weight | 2,135kg | |
| NC Standard Function | MITSUBISHI NC | M70A |
| NC display (8.4 color TFT LCD) | ||
| Machining program memory capacity | 600m | |
| Number of tool off-set correction | 40 pcs. | |
| Background programming editing function | ||
| Main spindle C-axis function ($1,$2) | ||
| User macro function | ||
| Tool nose rounding offset function | ||
| Corner chamfering/Corner rounding | ||
| Fixed cycle | ||
| Complex fixed cycle | ||
| Geometric commands | ||
| Operation manual | ||
| Serial In/Output interface | ||
| CF Card interface |
*(1) In use of rotary back tool unit: 70mm
*(2) In use of drill holder for deep hole: 70mm
Standard Accessories
- Synchronous rotary guide bush 20
- Synchronous rotary guide bush drive unit
- 4 Live tool unit
- Frontal 4-drill attachment
- Tool holder □12.7 (4 pcs.)
- Tool holder □12.7 for cut-off (1 pce.)
- Back tool unit (OD comb Tool ×1, ID Tool×3)
- Main：Chuck sleeve/spring/spindle cap
- Back：Chuck sleeve /spring/Spindle cap
- Drill holder Φ22-10-70 (3 pcs.)
- Tap holder Φ22-94L (1pce.)
- Main spindle cooling unit ($1)
- Main spindle air-purge ($2)
- Automatic lubricator (w/level detection)
- Coolant oil unit
- Coolant oil cut-off detector
- Cut-off tool breakage detector
- Door safety interlock
- Lightning surge protection function
- Main spindle load detection mode
- Automatic power interception
- Working light (High luminance LED)
- Parts catcher ($2)
- Leveling pads
Optional Accessories
- Fixed guide bush 20/25
- Synchronous rotary guide bush 25
- Sleeve for synchronous rotary guide bush
- $1
- 5 Live tool unit
- 3 Off-center-drill unit (E unit)
- Tool holder □12.7 (additional)
- Tool holder □12.7 for cut-off (additional)
- Drill holder for deep hole
- Tap holder for deep hole
- $2
- Rotary back tool unit (ID Tool×2, Off-center-drill×2)
- Back tool holder (OD comb Tool)
- ALPS TOOL NA nut
- REGO-FIX ERM nut
- Tool presetter
- Manual pulse generator
- NC display language(English/Chinese/Korean)
- Parts catcher
- Pipe type parts unloader (I.D Φ13ｍｍ or less)
- Large-sized lubricant pump 1.8L
- Override switch
- Tap breakage detector ($1)
- Parts conveyor
- Hanger bolt
- Medium pressure coolant
- Automatic fire extinguisher
- Oil mist collector
- Tooling
- Parts box
- Note:
- The above-mentioned machine capability is for the case when work material is SUS303.
Depending on the processing condition such as the quality of work material and the tools to be used，machine capabilities values may differ from the above-mentioned values. - The specification based on the specification applied within Japan. Specifications are subject to change without notice.
- This product could be classified as strategic item or other export regulated under the Foreign Exchange and Foreign Trade Law. Contact our sales representative when exporting this product.
